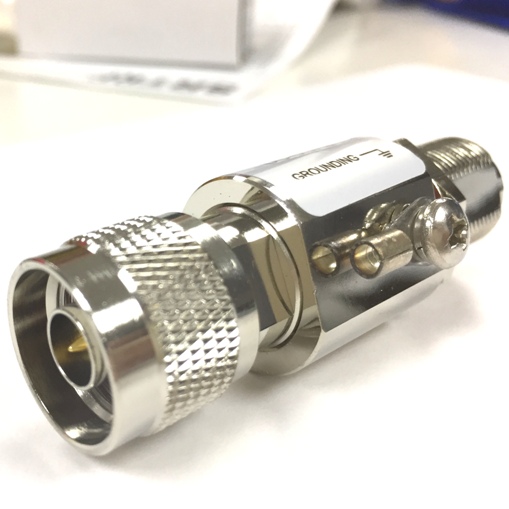

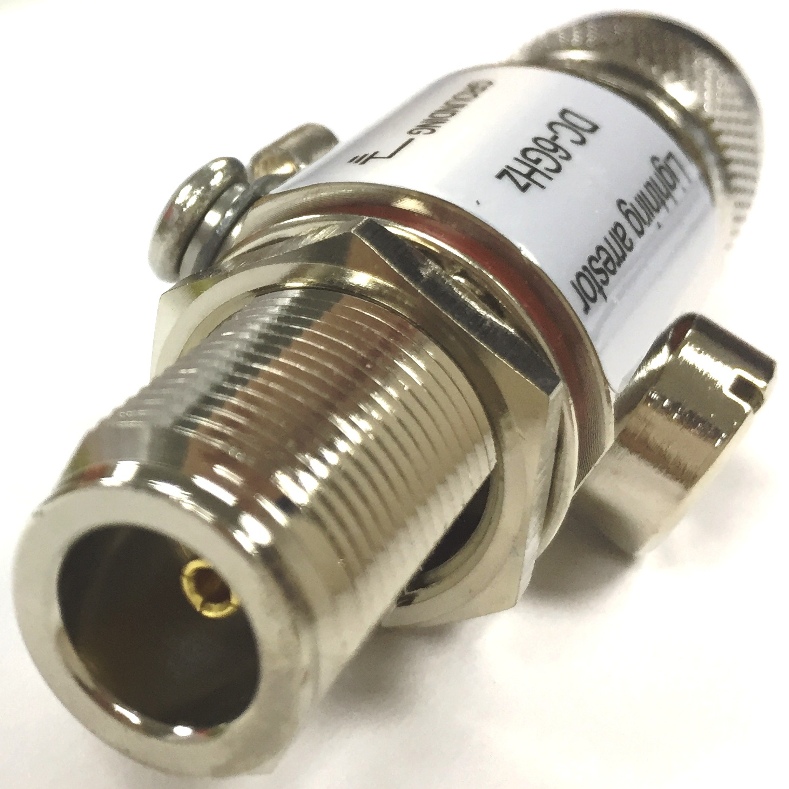

BL-N-JK-G-Y-1

Beschreibung

Part number: N-JK-G-Y-1

MATERIALS & PLATING

Shell/Body: BRASS, Nickel plated
Contact Pin: BRASS, Gold plated
Insulator: PTFE

ELECTRICAL CHARACTERISTICS

Impedance: 50Ω
Frequency range: 6GHz max
Dielectric Withstanding Voltage: 1000V(RMS)
Contact Resistance: Centerconductor≤3mΩ, Outerconductor≤2mΩ
Insulation Resistance: ≥1000MΩ
VSWR: DC~6GHz＜1.2
Insertion Loss: <0.25dB@ DC~6GHz

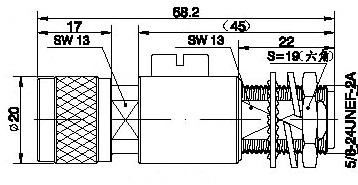

MECHANICALCHARACTERISTICS

Mating: 5/8-24UNEF-2A/B
Durability: ≥500 cycles

ENVIRONMENTALCHARACTERISTICS

Temperature range: -55°C to+155°C
