SRT-2.4+5.8-CM-1

Beschreibung

Electrical specifications

Frequency Range: 2400 ~ 2500 MHz,   5725 ~5850 MHz
V.S.W.R: <1.5 (2400 ~ 2500 MHz),   <1.8 (5725 ~5850 MHz)
Gain: 3 dBi
Polarization: Vertical
Impendence: 50 ohm
Horizontal Beamwidth: 360°
Vertical Beamwidth: 60±15°
Power: 50W max.

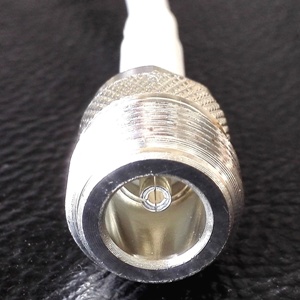

Connector: N Female

Mechanical Specifications

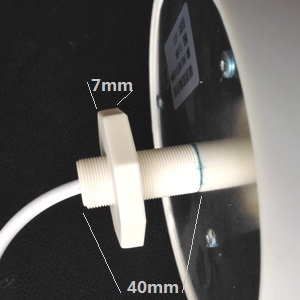

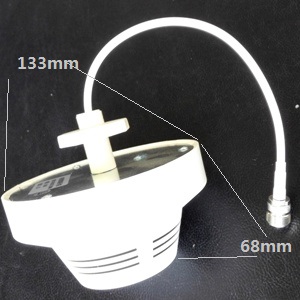

Dimension: Φ133*65mm
Weight: 0.12kg
Color: White
Radom Material: ABS
Operating Temperature: -40 ~ 55°C
